需求描述
- 存在下面的数据
@Datapublic class RepaymentPlanVO {/*** Last Interest Rate*/private BigDecimal lastInterestRate;/*** 根据期间生成的动态列*/private List<RepaymentPlanItemVO> listTrendsColumn;}
其中
lastInterestRate列是固定的listTrendsColumn是多列,根据计算得出
pom.xml
<dependencies><dependency><groupId>com.alibaba</groupId><artifactId>easyexcel</artifactId><version>2.2.6</version></dependency></dependencies>
公共类
● 这里代码基本和 如何用 easyExcel 动态导出全部数据? 一致
ExcelHead-动态 excel 表头
package com.luoma.finance.vo.report;import lombok.Data;/*** Excel 导出类 - ExcelHead*/@Datapublic class ExcelHead<T> {/*** 内容里的字段名称*/private String fieldName;/*** 显示值,一般为中文的*/private String title;/*** 如果为 null 的值*/private T nullValue;public ExcelHead(String fieldName, String title) {this.fieldName = fieldName;this.title = title;}public ExcelHead(String fieldName, String title, T nullValue) {this.fieldName = fieldName;this.title = title;this.nullValue = nullValue;}}
ContentTypeUtils- Content-type 工具类
package com.luoma.finance.util;import cn.hutool.core.util.CharsetUtil;import com.luoma.finance.data.ResponseCode;import com.luoma.finance.excepiton.RemoteBaseException;import java.io.UnsupportedEncodingException;import java.net.URLEncoder;/*** Content-type 工具类*/public final class ContentTypeUtils {public static final String CONTENT_DISPOSITION;public static final String APPLICATION_EXCEL;static {CONTENT_DISPOSITION = "Content-Disposition";APPLICATION_EXCEL = "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet";}public static String encode(String fileName) {try {return "attachment;filename=" + URLEncoder.encode(fileName, CharsetUtil.UTF_8)+ ".xlsx";} catch (UnsupportedEncodingException e) {throw new RemoteBaseException(ResponseCode.UNKNOWN_EXCEPTION, e.getMessage());}}}
ExcelSheetVerticalCellStyleStrategy-excel 样式设置
package com.luoma.finance.util.excel;import com.alibaba.excel.metadata.Head;import com.alibaba.excel.write.metadata.style.WriteCellStyle;import com.alibaba.excel.write.style.AbstractVerticalCellStyleStrategy;import com.luoma.finance.util.ExcelUtils;/*** excel 样式设置*/public class ExcelSheetVerticalCellStyleStrategy extends AbstractVerticalCellStyleStrategy {/*** 头部样式** @return 样式*/@Overrideprotected WriteCellStyle headCellStyle(Head head) {return ExcelUtils.writeCellStyle();}/*** 内容样式** @return 样式*/@Overrideprotected WriteCellStyle contentCellStyle(Head head) {return ExcelUtils.writeCellStyle();}}
ExcelUtils-excel 工具类
package com.luoma.finance.util;import cn.hutool.core.util.CharsetUtil;import com.alibaba.excel.EasyExcel;import com.alibaba.excel.support.ExcelTypeEnum;import com.alibaba.excel.write.builder.ExcelWriterBuilder;import com.alibaba.excel.write.metadata.style.WriteCellStyle;import com.google.common.collect.Lists;import com.luoma.finance.common.Contents;import com.luoma.finance.data.ResponseCode;import com.luoma.finance.excepiton.InternalApiException;import com.luoma.finance.util.excel.ExcelSheetVerticalCellStyleStrategy;import com.luoma.finance.vo.report.ExcelHead;import org.apache.poi.ss.usermodel.BorderStyle;import org.apache.poi.ss.usermodel.HorizontalAlignment;import org.apache.poi.ss.usermodel.VerticalAlignment;import javax.servlet.http.HttpServletResponse;import java.io.IOException;import java.util.ArrayList;import java.util.List;import java.util.Map;/*** excel 工具类*/public class ExcelUtils {/*** 单 sheet 导出公共方法** @param list 导出数据集合* @param tClass 数据对象类型* @param fileName 文件名称* @param sheetName sheet页名称* @param response http写入* @param <T> 数据对象类型*/public static <T> void applyExport(List<T> list, Class<T> tClass, String fileName, String sheetName,HttpServletResponse response) {if (null == list || list.size() <= 0) {throw new InternalApiException(ResponseCode.NO_DATA, Contents.EXPORT_NULL);}ExcelSheetVerticalCellStyleStrategy cellStyleStrategy = new ExcelSheetVerticalCellStyleStrategy();response.setCharacterEncoding(CharsetUtil.UTF_8);response.setContentType(ContentTypeUtils.APPLICATION_EXCEL);try {response.setHeader(ContentTypeUtils.CONTENT_DISPOSITION, ContentTypeUtils.encode(fileName));EasyExcel.write(response.getOutputStream(), tClass).sheet(sheetName).registerWriteHandler(cellStyleStrategy).doWrite(list);} catch (IOException e) {throw new InternalApiException(ResponseCode.OPERATE_ERROR, e.getMessage());}}/*** 构造excel基础样式** @return 样式*/public static WriteCellStyle writeCellStyle() {WriteCellStyle writeCellStyle = new WriteCellStyle();writeCellStyle.setHorizontalAlignment(HorizontalAlignment.CENTER);writeCellStyle.setVerticalAlignment(VerticalAlignment.CENTER);writeCellStyle.setWrapped(true);writeCellStyle.setBorderBottom(BorderStyle.THIN);writeCellStyle.setBorderLeft(BorderStyle.THIN);writeCellStyle.setBorderRight(BorderStyle.THIN);writeCellStyle.setBorderTop(BorderStyle.THIN);return writeCellStyle;}/*** 导出 excel** @param fileName 文件名称* @param headList 表头数据* @param dataList 表数据* @param response HttpServletResponse*/public static void export(String fileName,List<ExcelHead> headList,List<Map<String, Object>> dataList,HttpServletResponse response) {try {response.setCharacterEncoding(CharsetUtil.UTF_8);response.setContentType(ContentTypeUtils.APPLICATION_EXCEL);response.setHeader(ContentTypeUtils.CONTENT_DISPOSITION, ContentTypeUtils.encode(fileName));ExcelWriterBuilder writerBuilder = EasyExcel.write();writerBuilder.file(response.getOutputStream());writerBuilder.excelType(ExcelTypeEnum.XLSX);writerBuilder.autoCloseStream(true);ExcelSheetVerticalCellStyleStrategy cellStyleStrategy = new ExcelSheetVerticalCellStyleStrategy();writerBuilder.registerWriteHandler(cellStyleStrategy);writerBuilder.head(convertHead(headList)).sheet("sheet1").doWrite(convertData(headList, dataList));} catch (IOException e) {throw new InternalApiException(ResponseCode.OPERATE_ERROR, e.getMessage());}}/*** 写 excel** @param filePath 保存的路径名* @param headList 表头数据* @param dataList 表数据*/public static void write(String filePath, List<ExcelHead> headList, List<Map<String, Object>> dataList) {ExcelWriterBuilder writerBuilder = EasyExcel.write();writerBuilder.file(filePath);writerBuilder.excelType(ExcelTypeEnum.XLSX);writerBuilder.autoCloseStream(true);writerBuilder.head(convertHead(headList)).sheet("sheet1").doWrite(convertData(headList, dataList));}/*** 会先删除 excel 所有 sheet,再写入** @param filePath 保存的路径名* @param sheetName sheetName* @param c 数据对象类型* @param list 导出数据集合* @param <T> 数据对象类型*/public static <T> void writeSheet(String filePath, String sheetName, Class<T> c, List<T> list) {EasyExcel.write(filePath, c).sheet(sheetName).doWrite(list);}/*** 表头数据转换* https://easyexcel.opensource.alibaba.com/docs/current/quickstart/write#%E5%8A%A8%E6%80%81%E5%A4%B4%E5%AE%9E%E6%97%B6%E7%94%9F%E6%88%90%E5%A4%B4%E5%86%99%E5%85%A5** @param headList 表头数据* @return List<List < String>>*/private static List<List<String>> convertHead(List<ExcelHead> headList) {List<List<String>> list = new ArrayList<>();for (ExcelHead head : headList) {list.add(Lists.newArrayList(head.getTitle()));}//沒有搞清楚 head 的参数为 List<List<String>>,用 List<String> 就 OK 了return list;}/*** 表内容数据转换** @param headList 表头数据* @param dataList 表内容数据转换* @return List<List<Object>>*/private static List<List<Object>> convertData(List<ExcelHead> headList,List<Map<String, Object>> dataList) {List<List<Object>> result = new ArrayList();//对 dataList 转为 easyExcel 的数据格式for (Map<String, Object> data : dataList) {List<Object> row = new ArrayList();for (ExcelHead h : headList) {Object o = data.get(h.getFieldName());//需要对null的处理,比如age的null,要转为-1row.add(handler(o, h.getNullValue()));}result.add(row);}return result;}/*** null 值处理** @param 对象* @param nullValue 默认值* @return 默认值*/private static Object handler(Object o, Object nullValue) {return o != null ? o : nullValue;}}
测试
导出 Excel 到本地
public static void main(String[] args) {String filePath = "d:\\temp\\a.xlsx";//表头数据List<ExcelHead> headList = new ArrayList();headList.add(new ExcelHead<String>("name", "名称"));headList.add(new ExcelHead("age", "年龄", -1));//表内容数据List<Map<String, Object>> dataList = new ArrayList();Map<String, Object> one = new HashMap();one.put("name", "张三");one.put("age", 20);dataList.add(one);Map<String, Object> two = new HashMap();two.put("name", "李四");two.put("age", 18);dataList.add(two);Map<String, Object> there = new HashMap();there.put("name", "不知道年龄");there.put("age", null);dataList.add(there);//保存 excel 到指定路径ExcelUtils.write(filePath, headList, dataList);}
- 运行后,打开
a.xlsx
浏览器导出 Excel
package com.luoma.finance.controller;import io.swagger.annotations.ApiOperation;import lombok.extern.slf4j.Slf4j;import org.springframework.validation.annotation.Validated;import org.springframework.web.bind.annotation.*;import javax.annotation.Resource;import javax.servlet.http.HttpServletResponse;import java.util.ArrayList;import java.util.HashMap;import java.util.List;import java.util.Map;/*** 控制器 - 报表 - 还款计划报表*/@Slf4j@RestController@RequestMapping("/api/repaymentPlanReport")public class RepaymentPlanReportController {@GetMapping("/testExport")public void testExport(HttpServletResponse response) {//表头数据List<ExcelHead> headList = new ArrayList();headList.add(new ExcelHead<String>("name", "名称"));headList.add(new ExcelHead("age", "年龄", -1));//表内容数据List<Map<String, Object>> dataList = new ArrayList();Map<String, Object> one = new HashMap();one.put("name", "张三");one.put("age", 20);dataList.add(one);Map<String, Object> two = new HashMap();two.put("name", "李四");two.put("age", 18);dataList.add(two);Map<String, Object> there = new HashMap();there.put("name", "不知道年龄");there.put("age", null);dataList.add(there);//导出 excelExcelUtils.export("testExcel", headList, dataList, response);}}
- 访问 http://localhost:18810/financing/api/repaymentPlanReport/testExport
- 下载文件
testExcel.xlsx
非注解方式数据格式化
修改 ExcelHead-动态 excel 表头
package com.luoma.finance.vo.report;import lombok.Data;/*** Excel 导出表头类 - ExcelHead* v_hwhao - 2023年06月03日19:26:06*/@Datapublic class ExcelHead<T> {/*** 内容里的字段名称*/private String fieldName;/*** 显示值,一般为中文的*/private String title;/*** 列类型* 从 BuiltinFormats 的 BUILTIN_FORMATS_CN[] 获取* 序号参考:https://blog.csdn.net/ruantiao3440/article/details/126704369* 快速根据索引获取字符串、或根据字符串获取索引* int builtinFormat = BuiltinFormats.getBuiltinFormat("h:mm:ss AM/PM");* System.out.println(builtinFormat);* String builtinFormat1 = BuiltinFormats.getBuiltinFormat(49);* System.out.println(builtinFormat1);*/private String dataFormat;/*** 字体颜色*/private String fontColor;/*** 对齐方式,right:右对齐*/private String alignment;/*** 如果为 null 的值*/private T nullValue;public ExcelHead(String fieldName, String title, String dataFormat) {this.fieldName = fieldName;this.title = title;this.dataFormat = dataFormat;}public ExcelHead(String fieldName, String title, String dataFormat, T nullValue) {this.fieldName = fieldName;this.title = title;this.dataFormat = dataFormat;this.nullValue = nullValue;}public ExcelHead(){}}
修改表头定义
@GetMapping("/testExport")public void testExport(HttpServletResponse response) {//表头数据List<ExcelHead> headList = new ArrayList();headList.add(new ExcelHead<String>("name", "名称",null));ExcelHead<BigDecimal> ageHead = new ExcelHead<BigDecimal>("age", "年龄","4");ageHead.setFontColor("red");headList.add(ageHead);//表内容数据List<Map<String, Object>> dataList = new ArrayList();Map<String, Object> one = new HashMap();one.put("name", "张三");one.put("age", new BigDecimal("11111.23456789"));dataList.add(one);Map<String, Object> two = new HashMap();two.put("name", "李四");two.put("age", new BigDecimal("11122.23456"));dataList.add(two);Map<String, Object> there = new HashMap();there.put("name", "不知道年龄");there.put("age", null);dataList.add(there);//浏览器下载导出 excelExcelUtils.export("testExcel", headList, dataList, response);}
新增样式设置类-RepaymentPlanExcelStyle
package com.luoma.finance.vo.report;import com.alibaba.excel.metadata.Head;import com.alibaba.excel.write.metadata.style.WriteCellStyle;import com.alibaba.excel.write.metadata.style.WriteFont;import com.alibaba.excel.write.style.AbstractVerticalCellStyleStrategy;import com.luoma.finance.util.CommonUtil;import com.luoma.finance.util.ExcelUtils;import org.apache.poi.ss.usermodel.BorderStyle;import org.apache.poi.ss.usermodel.HorizontalAlignment;import org.apache.poi.ss.usermodel.IndexedColors;import org.apache.poi.ss.usermodel.VerticalAlignment;import java.util.List;/*** Excel 样式设置 - 还款计划表*/public class RepaymentPlanExcelStyle extends AbstractVerticalCellStyleStrategy {/*** 表头数据*/private List<ExcelHead> headList;public RepaymentPlanExcelStyle(List<ExcelHead> headList) {this.headList = headList;}/*** 头部样式** @return 样式*/@Overrideprotected WriteCellStyle headCellStyle(Head head) {WriteCellStyle writeCellStyle = new WriteCellStyle();writeCellStyle.setHorizontalAlignment(HorizontalAlignment.CENTER);//水平居中writeCellStyle.setVerticalAlignment(VerticalAlignment.CENTER);//垂直居中//writeCellStyle.setWrapped(true);//自动换行writeCellStyle.setBorderBottom(BorderStyle.THIN);//下边框writeCellStyle.setBorderLeft(BorderStyle.THIN);//左边框writeCellStyle.setBorderRight(BorderStyle.THIN);//右边框writeCellStyle.setBorderTop(BorderStyle.THIN);//上边框writeCellStyle.setShrinkToFit(true);//设置文本收缩至合适return writeCellStyle;}/*** 内容样式** @return 样式*/@Overrideprotected WriteCellStyle contentCellStyle(Head head) {//默认样式WriteCellStyle writeCellStyle = ExcelUtils.writeCellStyle();int columnIndex = 0;for (ExcelHead itemColumn : headList) {//数据格式化代码String dataFormat = itemColumn.getDataFormat();if(CommonUtil.isNotNull(dataFormat)){if(columnIndex == head.getColumnIndex()) {writeCellStyle.setDataFormat(Short.valueOf(dataFormat));}}//字体颜色String fontRed = itemColumn.getFontColor();if(CommonUtil.isNotNull(fontRed) && "red".equals(fontRed)){if(columnIndex == head.getColumnIndex()) {WriteFont font = new WriteFont();font.setColor(IndexedColors.RED.getIndex()); //红色writeCellStyle.setWriteFont(font);}}//对齐方式String alignment = itemColumn.getAlignment();if(CommonUtil.isNotNull(alignment) && Contents.alignmentRight.equals(alignment)){if(columnIndex == head.getColumnIndex()) {writeCellStyle.setHorizontalAlignment(HorizontalAlignment.RIGHT);}}columnIndex++;}//if(head.getColumnIndex() == 1) {// //------------------------字体设置// WriteFont font = new WriteFont();// font.setColor(IndexedColors.RED.getIndex()); //红色// writeCellStyle.setWriteFont(font);//// //------------------------千分位设置// //序号:4,从 BuiltinFormats 的 BUILTIN_FORMATS_CN[] 获取// //https://blog.csdn.net/ruantiao3440/article/details/126704369// //BuiltinFormats.getBuiltinFormat(4,"#,##0.00", Locale.SIMPLIFIED_CHINESE);// //writeCellStyle.setDataFormat((short)4);//}return writeCellStyle;}}
修改 ExcelUtils 中 export 方法
/*** excel工具类*/public class ExcelUtils {//其它代码省略/*** 导出 excel** @param fileName 文件名称* @param headList 表头数据* @param dataList 表数据* @param response HttpServletResponse*/public static void export(String fileName,List<ExcelHead> headList,List<Map<String, Object>> dataList,HttpServletResponse response) {try {response.setCharacterEncoding(CharsetUtil.UTF_8);response.setContentType(ContentTypeUtils.APPLICATION_EXCEL);response.setHeader(ContentTypeUtils.CONTENT_DISPOSITION, ContentTypeUtils.encode(fileName));ExcelWriterBuilder writerBuilder = EasyExcel.write();writerBuilder.file(response.getOutputStream());writerBuilder.excelType(ExcelTypeEnum.XLSX);writerBuilder.autoCloseStream(true);RepaymentPlanExcelStyle cellStyleStrategy = new RepaymentPlanExcelStyle(headList);writerBuilder.registerWriteHandler(cellStyleStrategy);writerBuilder.head(convertHead(headList)).sheet("sheet1").doWrite(convertData(headList, dataList));} catch (IOException e) {throw new InternalApiException(ResponseCode.OPERATE_ERROR, e.getMessage());}}}
测试
- 访问 http://localhost:18810/financing/api/repaymentPlanReport/testExport
- 下载文件
testExcel.xlsx
非注解方式定义列宽和行高
修改 ExcelUtils 中 export 方法
public class ExcelUtils {//其它代码省略/*** 导出 excel** @param fileName 文件名称* @param headList 表头数据* @param dataList 表数据* @param response HttpServletResponse*/public static void export(String fileName,List<ExcelHead> headList,List<Map<String, Object>> dataList,HttpServletResponse response) {try {response.setCharacterEncoding(CharsetUtil.UTF_8);response.setContentType(ContentTypeUtils.APPLICATION_EXCEL);response.setHeader(ContentTypeUtils.CONTENT_DISPOSITION, ContentTypeUtils.encode(fileName));ExcelWriterBuilder writerBuilder = EasyExcel.write();writerBuilder.file(response.getOutputStream());writerBuilder.excelType(ExcelTypeEnum.XLSX);writerBuilder.autoCloseStream(true);RepaymentPlanExcelStyle cellStyleStrategy = new RepaymentPlanExcelStyle(headList);writerBuilder.registerWriteHandler(cellStyleStrategy);writerBuilder//表头.head(convertHead(headList))//sheet.sheet("sheet1")//注册策略——简单的列宽策略,列宽 25.registerWriteHandler(new SimpleColumnWidthStyleStrategy(25))//注册策略——简单的行高策略,头行高 30,内容行高 20//.registerWriteHandler(new SimpleRowHeightStyleStrategy((short)30,(short)20))//写数据.doWrite(convertData(headList, dataList));} catch (IOException e) {throw new InternalApiException(ResponseCode.OPERATE_ERROR, e.getMessage());}}}
非注解方式自定义数据格式【未完成】
- 比如我先设置百分比的位数为 5 位,通过
BuiltinFormats中查询,得到最多就是保留 2 为小数
// 68"t0.00%",
假如我想要这种格式呢?
"t0.0000%",没有。想解决这个问题,我找了百度和谷歌几乎所有答案,看官方文档,都没有
最后的结论是,不行。
即使 >@ContentStyle注解的dataFormat,除了内建的BuiltinFormats格式之外,是否支持自定义格式呢 中提到的,可以通过在
CellWriteHandler中覆盖dataFormat。最终也是不行的。也还是只能支持BuiltinFormats中的格式。折中的解决方案是,把这一列转换为文本,把百分比数据
0.000123直接转换成字符串0.0123%,直接写入到单元格中,同时把这个一列设置为文本
ExcelHead<BigDecimal> ageHead = new ExcelHead<BigDecimal>("age", "年龄","49");ageHead.setFontColor("red");headList.add(ageHead);//表内容数据List<Map<String, Object>> dataList = new ArrayList();Map<String, Object> one = new HashMap();one.put("name", "张三111111111111111111111111111111111");one.put("age", "0.110123%");dataList.add(one);
49对应的BuiltinFormats是
// 49"@",

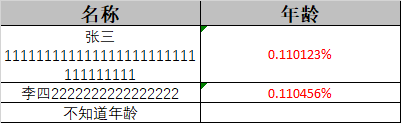

这样的效果效果并不是想要的
注解方式自定义数据格式【未完成】
ExcelTestVO
package com.luoma.finance.vo.report;import com.alibaba.excel.annotation.ExcelIgnore;import com.alibaba.excel.annotation.ExcelIgnoreUnannotated;import com.alibaba.excel.annotation.ExcelProperty;import com.alibaba.excel.annotation.format.NumberFormat;import com.alibaba.excel.annotation.write.style.ColumnWidth;import com.alibaba.excel.annotation.write.style.ContentRowHeight;import com.alibaba.excel.annotation.write.style.ContentStyle;import com.alibaba.excel.annotation.write.style.HeadRowHeight;import lombok.Data;import java.math.BigDecimal;/*** Excel 导出类 - 测试类*/@Data@ColumnWidth(25)@ContentRowHeight(25)@HeadRowHeight(45)@ExcelIgnoreUnannotatedpublic class ExcelTestVO {@ExcelProperty(value = "姓名")private String name;@NumberFormat(value = "#,##0.00")//千分位,保留 2 位小数@ExcelProperty(value = "金额")private BigDecimal amount;/*** 这个数值格式化注解时内置转换器使用,当没有配置自定义转换器converter时* 会根据field.getType类型+ String匹配内置的转换器。如 DoubleStringConverter*/@ExcelProperty(value = "汇率")@NumberFormat(value = "#.#####%")//自定义格式,转换为百分比,保留 5 位小数private BigDecimal rate;@ExcelIgnore//不包含到导出列中private String remark;}
导出接口
@GetMapping("/testExportModel")public void testExportModel(HttpServletResponse response) {List<ExcelTestVO> list = new ArrayList<>();ExcelTestVO vo = new ExcelTestVO();vo.setName("张三");vo.setAmount(new BigDecimal("6666.6666"));vo.setRate(new BigDecimal("0.0001234"));vo.setRemark("test1");list.add(vo);vo = new ExcelTestVO();vo.setName("李四");vo.setAmount(new BigDecimal("7777.7777"));vo.setRate(new BigDecimal("0.0005678"));vo.setRemark("test2");list.add(vo);ExcelUtils.applyExport(list, ExcelTestVO.class,"testExportModel", "testExportModel", response);}

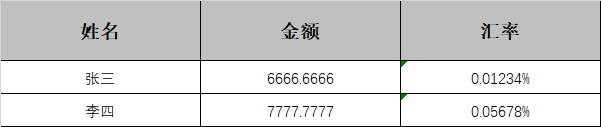

导出效果
也不是我想要的效果
