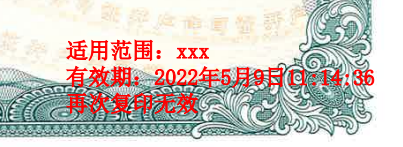

其它-水印文字特殊格式

开发环境

名称	版本
操作系统	Windows 10 X64
Visual Studio Ultimate	12.0.21005.1 REL
iText	itext7.7.1.2

参考

C#基于 iTextSharp.text.pdf 实现PDF水印添加功能
 C# PDF加密

Java-使用 iText 给 PDF 添加水印

源码下载

PDFMaker1.zip

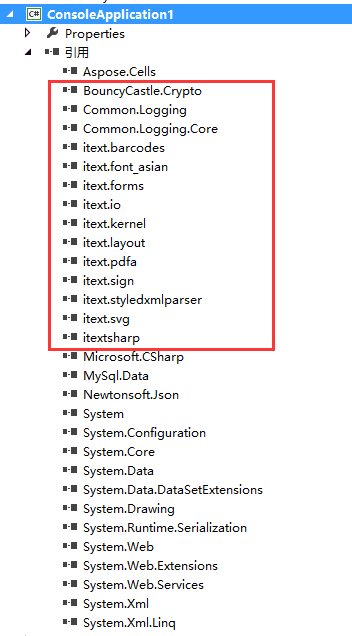

需要引用的 dll

下载地址：

链接：https://share.weiyun.com/CZJPfYvG
密码：jgdh6g

Common.Logging.3.4.1
Common.Logging.Core.3.4.1
itext7.7.1.2
itext7.font-asian.7.1.2
iTextSharp.5.5.13
Portable.BouncyCastle.1.8.1.3

PDF 工具类

加密类型

/// <summary>
/// 加密类型
/// </summary>
public enum EncryptionType
{
    AES_256 = EncryptionConstants.ENCRYPTION_AES_256,
    AES_128 = EncryptionConstants.ENCRYPTION_AES_128,
    RC4_128 = EncryptionConstants.STANDARD_ENCRYPTION_128,
    RC4_40 = EncryptionConstants.STANDARD_ENCRYPTION_40
}

PDF 参数类

/// <summary>
/// PDF 参数类
/// </summary>
public class PDFParams
{
    /// <summary>
    /// PDF 模板路径
    /// </summary>
    public string TemplatePath;
    /// <summary>
    /// PDF 模版字节
    /// </summary>
    public byte[] TempLateByte;
    /// <summary>
    /// PDF 存放的路径
    /// </summary>
    public string FileDirectory;
    /// <summary>
    /// 默认字体大小
    /// </summary>
    //public int DefaultFontSize = 12;
    public int DefaultFontSize = 32;
    /// <summary>
    /// 默认字体：宋体
    /// </summary>
    public string DefaultFontPath = @"C:\Windows\Fonts\simsun.ttc,0";
    /// <summary>
    /// 需要添加水印的 X 坐标
    /// </summary>
    public float X { get; set; }
    /// <summary>
    /// 需要添加水印的 Y 坐标
    /// </summary>
    public float Y { get; set; }
    /// <summary>
    /// 应用于文本的旋转角度，以弧度为单位
    /// 为 0 则不旋转
    /// </summary>
    public float Angle { get; set; }
    /// <summary>
    /// 水印文字
    /// </summary>
    public string Watermark { get; set; }
    /// <summary>
    /// 水印文字-RBG 值-R 值
    /// </summary>
    public int R = 210;
    /// <summary>
    /// 水印文字-RBG 值-G 值
    /// </summary>
    public int G = 210;
    /// <summary>
    /// 水印文字-RBG 值-B 值
    /// </summary>
    public int B = 210;
    /// <summary>
    /// 打开文档时输入的密码
    /// </summary>
    public string userPassword;
    /// <summary>
    /// 用户编辑 PDF 时需要的密码
    /// </summary>
    public string ownerPassword;
}

生产字节码文件需要用的类-MemoryTributary

/// <summary>
/// MemoryTributary is a re-implementation of MemoryStream that uses a dynamic list of byte arrays as a backing store, instead of a single byte array, the allocation
/// of which will fail for relatively small streams as it requires contiguous memory.
/// </summary>
public class MemoryTributary : Stream       /* http://msdn.microsoft.com/en-us/library/system.io.stream.aspx */
{
    #region Constructors
    public MemoryTributary()
    {
        Position = 0;
    }
    public MemoryTributary(byte[] source)
    {
        this.Write(source, 0, source.Length);
        Position = 0;
    }
    /* length is ignored because capacity has no meaning unless we implement an artifical limit */
    public MemoryTributary(int length)
    {
        SetLength(length);
        Position = length;
        byte[] d = block;   //access block to prompt the allocation of memory
        Position = 0;
    }
    #endregion
    #region Status Properties
    public override bool CanRead
    {
        get { return true; }
    }
    public override bool CanSeek
    {
        get { return true; }
    }
    public override bool CanWrite
    {
        get { return true; }
    }
    #endregion
    #region Public Properties
    public override long Length
    {
        get { return length; }
    }
    public override long Position { get; set; }
    #endregion
    #region Members
    protected long length = 0;
    protected long blockSize = 65536;
    protected List<byte[]> blocks = new List<byte[]>();
    #endregion
    #region Internal Properties
    /* Use these properties to gain access to the appropriate block of memory for the current Position */
    /// <summary>
    /// The block of memory currently addressed by Position
    /// </summary>
    protected byte[] block
    {
        get
        {
            while (blocks.Count <= blockId)
                blocks.Add(new byte[blockSize]);
            return blocks[(int)blockId];
        }
    }
    /// <summary>
    /// The id of the block currently addressed by Position
    /// </summary>
    protected long blockId
    {
        get { return Position / blockSize; }
    }
    /// <summary>
    /// The offset of the byte currently addressed by Position, into the block that contains it
    /// </summary>
    protected long blockOffset
    {
        get { return Position % blockSize; }
    }
    #endregion
    #region Public Stream Methods
    public override void Flush()
    {
    }
    public override int Read(byte[] buffer, int offset, int count)
    {
        long lcount = (long)count;
        if (lcount < 0)
        {
            throw new ArgumentOutOfRangeException("count", lcount, "Number of bytes to copy cannot be negative.");
        }
        long remaining = (length - Position);
        if (lcount > remaining)
            lcount = remaining;
        if (buffer == null)
        {
            throw new ArgumentNullException("buffer", "Buffer cannot be null.");
        }
        if (offset < 0)
        {
            throw new ArgumentOutOfRangeException("offset", offset, "Destination offset cannot be negative.");
        }
        int read = 0;
        long copysize = 0;
        do
        {
            copysize = Math.Min(lcount, (blockSize - blockOffset));
            Buffer.BlockCopy(block, (int)blockOffset, buffer, offset, (int)copysize);
            lcount -= copysize;
            offset += (int)copysize;
            read += (int)copysize;
            Position += copysize;
        } while (lcount > 0);
        return read;
    }
    public override long Seek(long offset, SeekOrigin origin)
    {
        switch (origin)
        {
            case SeekOrigin.Begin:
                Position = offset;
                break;
            case SeekOrigin.Current:
                Position += offset;
                break;
            case SeekOrigin.End:
                Position = Length - offset;
                break;
        }
        return Position;
    }
    public override void SetLength(long value)
    {
        length = value;
    }
    public override void Write(byte[] buffer, int offset, int count)
    {
        long initialPosition = Position;
        int copysize;
        try
        {
            do
            {
                copysize = Math.Min(count, (int)(blockSize - blockOffset));
                EnsureCapacity(Position + copysize);
                Buffer.BlockCopy(buffer, (int)offset, block, (int)blockOffset, copysize);
                count -= copysize;
                offset += copysize;
                Position += copysize;
            } while (count > 0);
        }
        catch (Exception e)
        {
            Position = initialPosition;
            throw e;
        }
    }
    public override int ReadByte()
    {
        if (Position >= length)
            return -1;
        byte b = block[blockOffset];
        Position++;
        return b;
    }
    public override void WriteByte(byte value)
    {
        EnsureCapacity(Position + 1);
        block[blockOffset] = value;
        Position++;
    }
    protected void EnsureCapacity(long intended_length)
    {
        if (intended_length > length)
            length = (intended_length);
    }
    #endregion
    #region IDispose
    /* http://msdn.microsoft.com/en-us/library/fs2xkftw.aspx */
    protected override void Dispose(bool disposing)
    {
        /* We do not currently use unmanaged resources */
        base.Dispose(disposing);
    }
    #endregion
    #region Public Additional Helper Methods
    /// <summary>
    /// Returns the entire content of the stream as a byte array. This is not safe because the call to new byte[] may
    /// fail if the stream is large enough. Where possible use methods which operate on streams directly instead.
    /// </summary>
    /// <returns>A byte[] containing the current data in the stream</returns>
    public byte[] ToArray()
    {
        long firstposition = Position;
        Position = 0;
        byte[] destination = new byte[Length];
        Read(destination, 0, (int)Length);
        Position = firstposition;
        return destination;
    }
    /// <summary>
    /// Reads length bytes from source into the this instance at the current position.
    /// </summary>
    /// <param name="source">The stream containing the data to copy</param>
    /// <param name="length">The number of bytes to copy</param>
    public void ReadFrom(Stream source, long length)
    {
        byte[] buffer = new byte[4096];
        int read;
        do
        {
            read = source.Read(buffer, 0, (int)Math.Min(4096, length));
            length -= read;
            this.Write(buffer, 0, read);
        } while (length > 0);
    }
    /// <summary>
    /// Writes the entire stream into destination, regardless of Position, which remains unchanged.
    /// </summary>
    /// <param name="destination">The stream to write the content of this stream to</param>
    public void WriteTo(Stream destination)
    {
        long initialpos = Position;
        Position = 0;
        this.CopyTo(destination);
        Position = initialpos;
    }
    #endregion
}

核心-PDF 生成类

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.IO;
using System.Runtime.InteropServices;
using System.Threading.Tasks;
using iText.IO.Font;
using iText.IO.Image;
using iText.Barcodes;
using iText.Kernel.Colors;
using iText.Kernel.Font;
using iText.Kernel.Pdf;
using iText.Layout;
using iText.Layout.Borders;
using iText.Layout.Element;
using iText.Layout.Properties;
using iText.Barcodes.Qrcode;
using iText.IO.Source;
using iText.Kernel.Pdf.Annot;
using iText.Kernel.Pdf.Xobject;
namespace ConsoleApplication1.Utils
{
    /// <summary>
    /// PDF 生成类
    /// </summary>
    public class PDFMaker
    {
        /// <summary>
        /// PDF 参数
        /// </summary>
        PDFParams1 pdfParams;
        /// <summary>
        /// PDF 模版
        /// </summary>
        Lazy<PdfPage> Template;
        /// <summary>
        /// 字体
        /// </summary>
        Lazy<PdfFont> defaultFont;
        /// <summary>
        /// 构造函数
        /// </summary>
        public PDFMaker1(PDFParams pdfParam)
        {
            pdfParams = pdfParam;
            if (!string.IsNullOrWhiteSpace(pdfParams.TemplatePath))
            {
                Template = new Lazy<PdfPage>(() =>
                {
                    return new PdfDocument(new PdfReader(pdfParams.TemplatePath)).GetPage(1);
                });
            }
            else if (pdfParam.TempLateByte != null && pdfParam.TempLateByte.Length > 0)
            {
                Template = new Lazy<PdfPage>(() =>
                {
                    return new PdfDocument(new PdfReader(new MemoryStream(pdfParam.TempLateByte))).GetPage(1);
                });
            }
            defaultFont = new Lazy<PdfFont>(() =>
            {
                PdfFont font;
                font= PdfFontFactory.CreateFont(pdfParams.DefaultFontPath, PdfEncodings.IDENTITY_H,true);
                font.SetSubset(true);
                return font;
            });
        }
        /// <summary>
        /// 生成 PDF 到指定路径
        /// </summary>
        /// <returns>生成成功返回 true</returns>
        public bool MakePDF()
        {
            string filePath = pdfParams.FileDirectory;
            PdfWriter writer = new PdfWriter(filePath);
            MakePDFInit(writer);
            return true;
        }
        /// <summary>
        /// 生成加密后的 PDF 到指定路径
        /// 参考：https://www.cnblogs.com/nuomibaibai/p/16635287.html
        /// </summary>
        /// <returns>生成成功返回 true</returns>
        public bool MakePasswordPDF() {
            // Set document options
            int document_options = 0;
            WriterProperties prop = new WriterProperties(); // Set properties of output

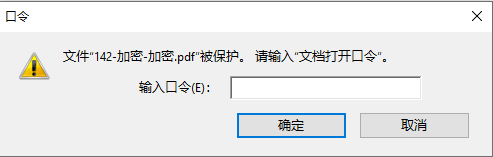

            //userPassword：打开文档时输入的密码
            byte[] userPassword = null;
            if (!String.IsNullOrWhiteSpace(pdfParams.userPassword)) {
                userPassword = Encoding.ASCII.GetBytes(pdfParams.userPassword);
            }

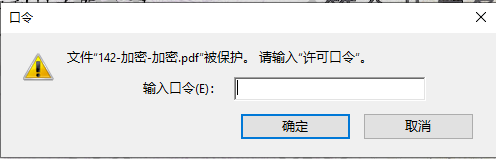

            //ownerPassword：用户编辑 PDF 时需要的密码
            byte[] ownerPassword = null;
            if (!String.IsNullOrWhiteSpace(pdfParams.ownerPassword))
            {
                ownerPassword = Encoding.ASCII.GetBytes(pdfParams.ownerPassword);
            }
            if (userPassword == null && ownerPassword == null) {
                throw new Exception("必须设置打开文档时输入的密码或者用户编辑 PDF 时需要的密码");
            }
            //设置密码
            prop.SetStandardEncryption(userPassword, ownerPassword, document_options, (int)EncryptionType.AES_256);  // Enable encryption
            string filePath = pdfParams.FileDirectory;
            PdfWriter writer = new PdfWriter(filePath, prop);
            MakePDFInit(writer);
            return true;
        }
        /// <summary>
        /// 生成 PDF 字节码
        /// </summary>
        /// <returns>PDF 字节码</returns>
        public byte[] MakePDFStream()
        {
            MemoryTributary file = new MemoryTributary();
            PdfWriter writer = new PdfWriter(file);
            MakePDFInit(writer);
            file.Position = 0;
            byte[] bytes = new byte[file.Length];
            file.Read(bytes, 0, bytes.Length);
            return bytes;
        }
        /// <summary>
        /// 生成 PDF
        /// </summary>
        /// <param name="writer">PdfWriter</param>
        public void MakePDFInit(PdfWriter writer)
        {
            PdfDocument pdfDoc = new PdfDocument(writer);
            Document doc = new Document(pdfDoc);
            doc.SetFont(defaultFont.Value);
            doc.SetFontSize(pdfParams.DefaultFontSize);
            //doc.SetFontColor(new DeviceRgb(pdfParams.R, pdfParams.G, pdfParams.B));
            //doc.SetStrokeColor(new DeviceRgb(pdfParams.R, pdfParams.G, pdfParams.B));
            //上面的 rgb 无法生效，只能生效一种颜色
            doc.SetFontColor(new DeviceRgb(System.Drawing.Color.FromArgb((int)pdfParams.R, (int)pdfParams.G, (int)pdfParams.B)));
            doc.SetBold();
            pdfDoc.AddPage(Template.Value.CopyTo(pdfDoc));//在当前页的基础上添加，没有这句话就是把整个 PDF 的内容覆盖掉
            if (pdfParams.Angle == 0)
            {
                Text txt = new Text(pdfParams.Watermark);
                doc.ShowTextAligned(new Paragraph(txt), pdfParams.X, pdfParams.Y, TextAlignment.LEFT, VerticalAlignment.TOP);
            }
            else
            {
                doc.ShowTextAligned(pdfParams.Watermark, pdfParams.X, pdfParams.Y, TextAlignment.LEFT, VerticalAlignment.TOP, pdfParams.Angle);
            }
            doc.Close();
        }
    }
}

测试

生成 PDF(不加密)

//第一种方式：生成 PDF
//PDF 参数
PDFParams pdfParams = new PDFParams();
pdfParams.TemplatePath = "D:\\data\\105.pdf";
pdfParams.FileDirectory = "D:\\data\\105-1.pdf";
pdfParams.Watermark = "适用范围：xxx\n有效期：2022年5月9日11:14:36\n再次复印无效";
pdfParams.X = 77f;
pdfParams.Y = 692.5f;
pdfParams.Angle = 0f;
PDFMaker pdfMaker = new PDFMaker(pdfParams);
pdfMaker.MakePDF();

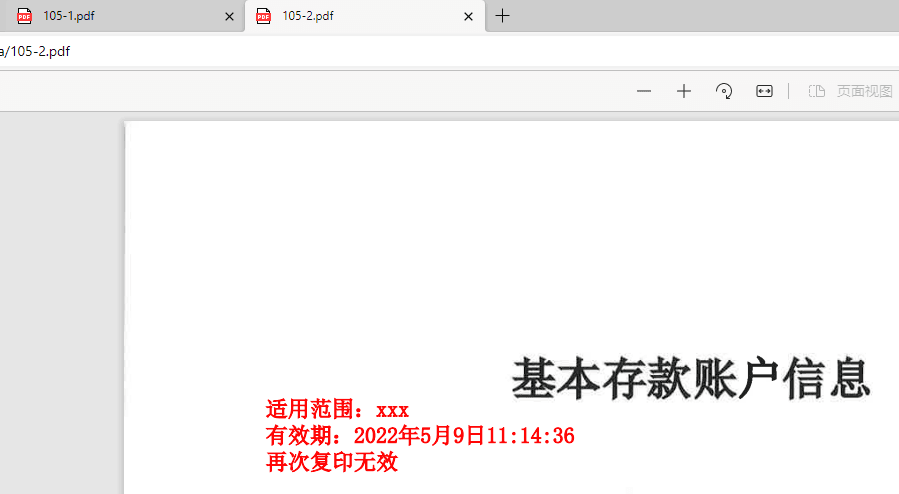

生成字节码(不加密)

//第二种方式：生成字节码保存为 pdf
//PDF 参数
PDFParams pdfParams = new PDFParams();
pdfParams.TemplatePath = "D:\\data\\105A.pdf";
pdfParams.Watermark = "适用范围：xxx\n有效期：2022年5月9日11:14:36\n再次复印无效";
pdfParams.X = 77f;
pdfParams.Y = 692.5f;
pdfParams.Angle = 4.71f;//这里适合 PDF 页面是旋转过的，比如 A4 变成了旋转过的，正常写入字体就是竖着的 A4，这个时候就需要对字体就行旋转
PDFMaker pdfMaker = new PDFMaker(pdfParams);
byte[] bytes = pdfMaker.MakePDFStream();
File.WriteAllBytes("D:/data/105-2.pdf", bytes);

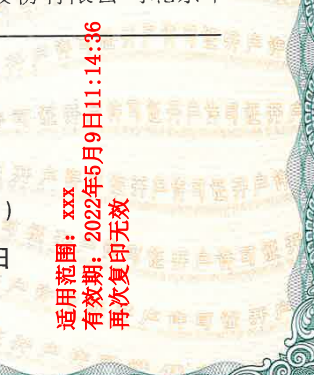

pdfParams.Angle = 0f;

pdfParams.Angle = 4.71f;

根据字节码生成(不加密)

//第三种方式：根据字节码保存为 pdf
//PDF 参数
PDFParams pdfParams = new PDFParams();
pdfParams.TempLateByte = File.ReadAllBytes("D:\\data\\105.pdf");
pdfParams.FileDirectory = "D:\\data\\105-1.pdf";
pdfParams.Watermark = "适用范围：xxx\n有效期：2022年5月9日11:14:36\n再次复印无效";
//纵向
pdfParams.X = 45f;
pdfParams.Y = 330.5f;
pdfParams.Angle = 0f;
PDFMaker pdfMaker = new PDFMaker(pdfParams);
pdfMaker.MakePDF();

生成 PDF(加密)

//PDF 参数
PDFParams pdfParams = new PDFParams();
pdfParams.TemplatePath = "D:\\data\\141.pdf";
pdfParams.FileDirectory = "D:\\data\\142-加密-加密.pdf";
pdfParams.Watermark = "\u00a0\u00a0\u00a0\u00a0\u00a0\u00a0保密文件，禁止外传，改文件仅用于\r\n\r\n[xx项目][xx平台]使用\r\n\r\n\u00a0\u00a0\u00a0\u00a0\u00a0\u00a0\u00a0\u00a0出具给[xx集团]";
//纵向
pdfParams.X = 50f;
pdfParams.Y = 125.5f;
pdfParams.Angle = 19.5f;
pdfParams.userPassword = "123";
pdfParams.ownerPassword = "456";
PDFMaker pdfMaker = new PDFMaker(pdfParams);
pdfMaker.MakePasswordPDF();

打开 142-加密-加密.pdf

编辑 142-加密-加密.pdf

错误-itext not assignable to target type ‘Common.Logging.Configuration.LogSetting

解决思路：iText7 unable to setup logging

问题描述

当我把上面的代码应用到我的 Web 项目中时，报了下面的错误

{"ConfigurationReader Common.Logging.Configuration.DefaultConfigurationReader
returned unknown settings instance of type
Luoma.FMS.Framework.Logging.Configuration.LogSetting"}
{"Type 'Luoma.FMS.Framework.Logging.Configuration.LogSetting, Luoma.FMS.Framework, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null'
of parameter 'sectionResult' is not assignable to target type
'Common.Logging.Configuration.LogSetting, Common.Logging, Version=3.4.1.0, Culture=neutral, PublicKeyToken=af08829b84f0328e'\r\n
参数名: sectionResult\r\n
实际值是 Luoma.FMS.Framework.Logging.Configuration.LogSetting。"
}
 在 Common.Logging.Configuration.ArgUtils.Guard[T](Function`1 function, String messageFormat, Object[] args) 位置 C:\_oss\common-logging\src\Common.Logging.Portable\Logging\Configuration\ArgUtils.cs:行号 336
   在 Common.Logging.Configuration.ArgUtils.Guard(Action action, String messageFormat, Object[] args) 位置 C:\_oss\common-logging\src\Common.Logging.Portable\Logging\Configuration\ArgUtils.cs:行号 296
   在 Common.Logging.LogManager.BuildLoggerFactoryAdapter() 位置 C:\_oss\common-logging\src\Common.Logging.Portable\Logging\LogManager.cs:行号 526
   在 Common.Logging.LogManager.get_Adapter() 位置 C:\_oss\common-logging\src\Common.Logging.Portable\Logging\LogManager.cs:行号 225
   在 iText.Kernel.Colors.DeviceRgb..ctor(Single r, Single g, Single b)
   在 Luoma.EACC.Web.Utils.PDFMaker.MakePDFInit(PdfWriter writer) 位置 d:\luoma\Proj-EACC\Code\EAC_net\Luoma.EACC.Web\Utils\PDFMaker.cs:行号 185
   在 Luoma.EACC.Web.Utils.PDFMaker.MakePDFStream() 位置 d:\luoma\Proj-EACC\Code\EAC_net\Luoma.EACC.Web\Utils\PDFMaker.cs:行号 167
   在 Luoma.EACC.Web.Areas.SP.Controllers.ApplyController.MakeAccountLicencePDF(AccountOpeningPermitVO accountOpeningPermitVO, String companyName, String receiverUnit, String applyReason, Nullable`1 receiptDate) 位置 d:\luoma\Proj-EACC\Code\EAC_net\Luoma.EACC.Web\Areas\SP\Controllers\ApplyController.cs:行号 1741

问题分析

根据报错信息，是下面这行代码报的错误
其实很奇怪，这行代码为什么要去写日志呢

PdfDocument pdfDoc = new PdfDocument(writer);

问题原因就是我的 Web.config 中配置了下面的日志配置信息

<configuration>
  <configSections>
    <sectionGroup name="common">
      <section name="logging" type="Luoma.FMS.Framework.Logging.ConfigurationSectionHandler, Luoma.FMS.Framework"/>
    </sectionGroup>
  </configSections>
  <common>
    <logging>
      <factoryAdapter type="LuomaFMS.Framework.Logging.Log4Net.Log4NetLoggerFactoryAdapter, Luoma.FMS.Framework">
        <arg key="configType" value="FILE-WATCH" />
        <arg key="configFile" value="~/log4net.config" />
      </factoryAdapter>
    </logging>
  </common>
</configuration>

注释掉这一段，也能正常运行

  <common>
    <logging>
      <factoryAdapter type="Luoma.FMS.Framework.Logging.Log4Net.Log4NetLoggerFactoryAdapter, Luoma.FMS.Framework">
        <arg key="configType" value="FILE-WATCH" />
        <arg key="configFile" value="~/log4net.config" />
      </factoryAdapter>
    </logging>
  </common>

说明就是 PdfDocument pdfDoc = new PdfDocument(writer); 去写日志，读取了配置信息，发现不是 Common.Logging 相关的配置信息，所以报错。

问题解决

参考了 iText7 unable to setup logging
手动指定日志配置类即可

using Common.Logging;
using Common.Logging.Simple;
using Common.Logging.Configuration;

// create properties
NameValueCollection properties = new NameValueCollection();
properties["showDateTime"] = "true";
properties["level"] = "All";
// set Adapter
LogManager.Adapter = new ConsoleOutLoggerFactoryAdapter(properties);

完整代码

/// <summary>
/// 生成 PDF
/// </summary>
/// <param name="writer">PdfWriter</param>
public void MakePDFInit(PdfWriter writer)
{
    //----------------------------------------------------
    //https://stackoverflow.com/questions/50987189/itext7-unable-to-setup-logging
    //new PdfDocument(writer);  会去写日志，会去 .config 文件读取  common.logging 配置，
    //本项目的  common.logging 是单独的，和 Common.Logging 的配置不同，所以会报错 itext not assignable to target type 'Common.Logging.Configuration.LogSetting
    //所以这里手动指定 LogManager，让它别去读取配置信息
    // create properties
    NameValueCollection properties = new NameValueCollection();
    properties["showDateTime"] = "true";
    properties["level"] = "All";
    // set Adapter
    LogManager.Adapter = new ConsoleOutLoggerFactoryAdapter(properties);
    //----------------------------------------------------
    PdfDocument pdfDoc = new PdfDocument(writer);
    Document doc = new Document(pdfDoc);
    doc.SetFont(defaultFont.Value);
    doc.SetFontSize(pdfParams.DefaultFontSize);
    doc.SetFontColor(new DeviceRgb(pdfParams.R, pdfParams.G, pdfParams.B));
    doc.SetStrokeColor(new DeviceRgb(pdfParams.R, pdfParams.G, pdfParams.B));
    doc.SetBold();
    pdfDoc.AddPage(Template.Value.CopyTo(pdfDoc));//在当前页的基础上添加，没有这句话就是把整个 PDF 的内容覆盖掉
    if (pdfParams.Angle == 0)
    {
        Text txt = new Text(pdfParams.Watermark);
        doc.ShowTextAligned(new Paragraph(txt), pdfParams.X, pdfParams.Y, TextAlignment.LEFT, VerticalAlignment.TOP);
    }
    else
    {
        doc.ShowTextAligned(pdfParams.Watermark, pdfParams.X, pdfParams.Y, TextAlignment.LEFT, VerticalAlignment.TOP, pdfParams.Angle);
    }
    doc.Close();
}
}

我真的是服了，这个 PDF 的操作类库，去写日志信息干什么？服

其它-水印文字特殊格式

特殊文字	符号
空格	`\u00a0`
换行	`\r\n`

C#-使用 iText 给 PDF 添加水印
