5.基于 JWT(Json web token) 验证权限

说明

本文代码基于 4.Spring Boot 过滤器 Filter 使用 项目代码进行修改

JWT(Json web token) 加解密的类 JWTUtil 使用了 JWT(Json Web Token) 这篇文章的类

参考

JWT(Json Web Token)

https://jwt.io/

JSON Web Token 入门教程

为什么要在密码里加点“盐”

IntelliJ IDEA 2018.3 创建 Maven 多模块(Module)项目+负载均衡

4.Spring Boot 过滤器 Filter 使用

【项目实践】一文带你搞定页面权限、按钮权限以及数据权限

【项目实践】一文带你搞定Session和JWT的登录认证方式

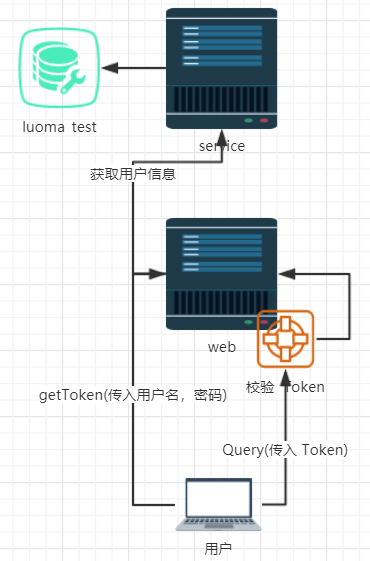

目标

1.使用用户名，密码获取 Token

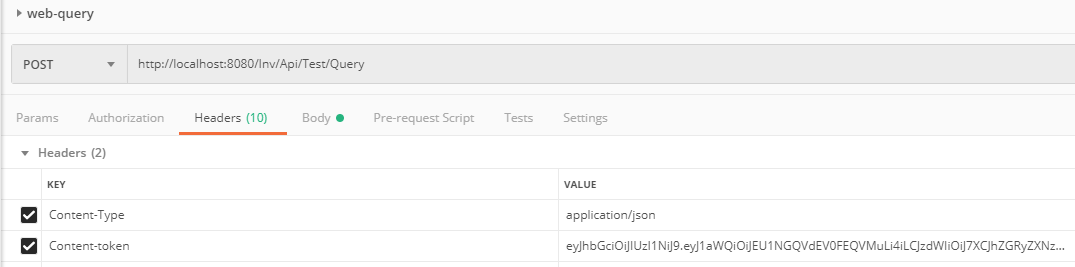

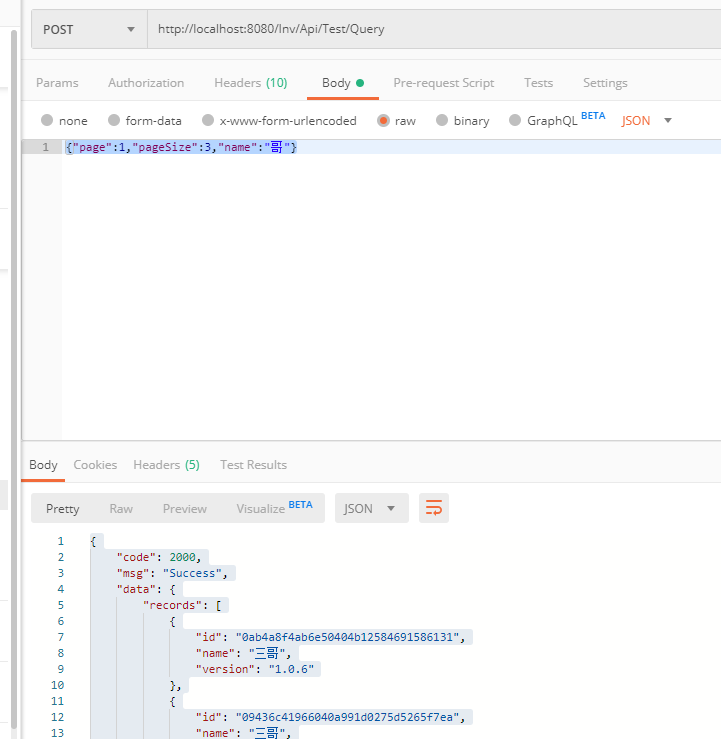

2.使用 Token 验证，验证成功后才能使用查询功能

开发环境

名称	版本
操作系统	Windows 10 X64
JDK	JDK1.8（jdk-8u151-windows-x64）
IntelliJ IDEA	IntelliJ IDEA 2018.3
Maven	Maven 3.6.0

测试数据表

用户表-t_rbt_user

-- ----------------------------
-- Table structure for t_rbt_user
-- ----------------------------
DROP TABLE IF EXISTS `t_rbt_user`;
CREATE TABLE `t_rbt_user`  (
  `id` varchar(100) CHARACTER SET utf8 COLLATE utf8_unicode_ci NOT NULL COMMENT '主键',
  `loginName` varchar(50) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '用户名',
  `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '密码',
  `withSalt` varchar(255) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '密码加盐',
    `gender` varchar(10) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '性别',
    `phone` varchar(10) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '手机号',
    `city` varchar(10) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '城市',
    `address` varchar(255) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '地址',
  `create_by` varchar(50) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '创建人',
  `create_time` timestamp(0) NULL DEFAULT NULL COMMENT '创建时间',
  `update_by` varchar(50) CHARACTER SET utf8 COLLATE utf8_unicode_ci NULL DEFAULT NULL COMMENT '修改人',
  `update_time` timestamp(0) NULL DEFAULT NULL COMMENT '修改时间',
  `is_delete` int(1) NULL DEFAULT NULL COMMENT '是否删除',
  `biz_time` timestamp(0) NULL DEFAULT NULL COMMENT '系统时间戳',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_unicode_ci ROW_FORMAT = Dynamic;
SET FOREIGN_KEY_CHECKS = 1;

测试表-t_rbt_test

见 测试表-t_rbt_test

Json web token (JWT) 公共类-JWTUtil

原理

参考阮一峰的 JSON Web Token 入门教程， 我就不抄了

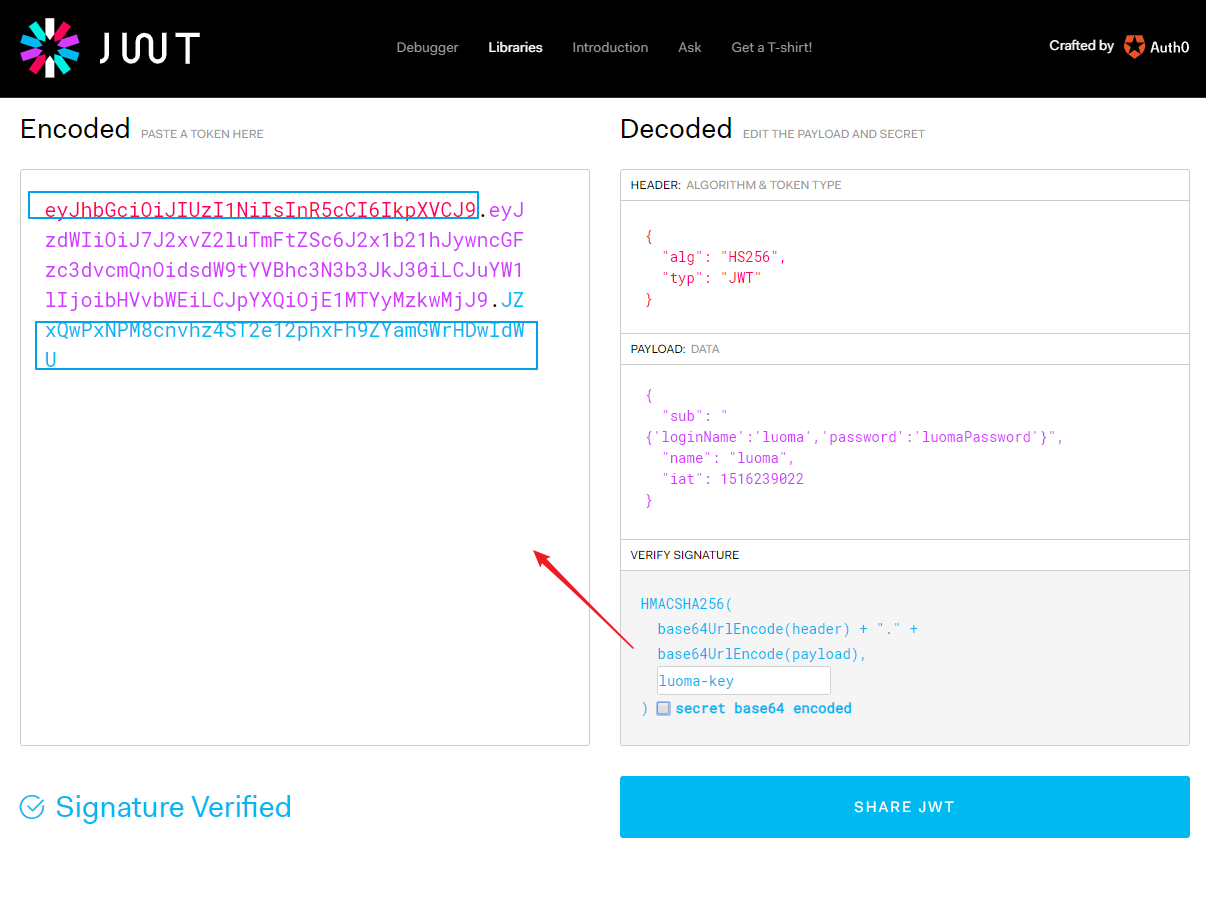

不过我发现一个网址 https://jwt.io/

里面的这个页面很好的表现了这个原理

pom.xml(test-invoice-cloud)

<properties>
    <jjwt.version>0.8.0</jjwt.version>
</properties>
<dependencies>
    <!--jwt start-->
    <dependency>
        <groupId>io.jsonwebtoken</groupId>
        <artifactId>jjwt</artifactId>
        <version>${jjwt.version}</version>
    </dependency>
    <!--jwt end-->
</dependencies>

pom.xml(test-invoice-common)

<!--Base64-->
<dependency>
    <groupId>org.apache.tomcat.embed</groupId>
    <artifactId>tomcat-embed-core</artifactId>
</dependency>

JWTUtil

test-invoice-common 项目添加类 JWTUtil

package com.test.invoice.util;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.JwtBuilder;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import org.apache.tomcat.util.codec.binary.Base64;
import javax.crypto.SecretKey;
import javax.crypto.spec.SecretKeySpec;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
/**
 * Json web token (JWT)
 * https://blog.csdn.net/qq_37636695/article/details/79265711
 *
 * @author:
 * @version:
 * @date: 2019-10-10 19:16
 */
public class JWTUtil {
    /**
     * 创建 Json web token (JWT)
     * @param id        Json web token (JWT) 的唯一标识，根据业务需要，这个可以设置为一个不重复的值，主要用来作为一次性 token,从而回避重放攻击
     * @param subject   Json web token (JWT) 的主体，即它的所有人，这个是一个json格式的字符串，可以存放什么userid，roldid之类的，作为什么用户的唯一标志
     * @param ttlMillis 过期的时间长度,单位毫秒
     * @return Json web token (JWT)
     * @throws Exception
     */
    public static String createJWT(String id, String subject, long ttlMillis) throws Exception {
        SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256; //指定签名的时候使用的签名算法，也就是header那部分，jjwt已经将这部分内容封装好了。
        long nowMillis = System.currentTimeMillis();//生成JWT的时间
        Date now = new Date(nowMillis);
        Map<String,Object> claims = new HashMap<String,Object>();//创建payload的私有声明（根据特定的业务需要添加，如果要拿这个做验证，一般是需要和jwt的接收方提前沟通好验证方式的）
        claims.put("uid", "DSSFAWDWADAS...");
        claims.put("user_name", "admin");
        claims.put("nick_name","DASDA121");
        SecretKey key = generalKey();//生成签名的时候使用的秘钥secret,这个方法本地封装了的，一般可以从本地配置文件中读取，切记这个秘钥不能外露哦。它就是你服务端的私钥，在任何场景都不应该流露出去。一旦客户端得知这个secret, 那就意味着客户端是可以自我签发jwt了。
        //下面就是在为payload添加各种标准声明和私有声明了
        JwtBuilder builder = Jwts.builder() //这里其实就是new一个JwtBuilder，设置jwt的body
                .setClaims(claims)          //如果有私有声明，一定要先设置这个自己创建的私有的声明，这个是给builder的claim赋值，一旦写在标准的声明赋值之后，就是覆盖了那些标准的声明的
                .setId(id)                  //设置jti(JWT ID)：是JWT的唯一标识，根据业务需要，这个可以设置为一个不重复的值，主要用来作为一次性token,从而回避重放攻击。
                .setIssuedAt(now)           //iat: jwt的签发时间
                .setSubject(subject)        //sub(Subject)：代表这个JWT的主体，即它的所有人，这个是一个json格式的字符串，可以存放什么userid，roldid之类的，作为什么用户的唯一标志。
                .signWith(signatureAlgorithm, key);//设置签名使用的签名算法和签名使用的秘钥
        if (ttlMillis >= 0) {
            long expMillis = nowMillis + ttlMillis;
            Date exp = new Date(expMillis);
            builder.setExpiration(exp);     //设置过期时间
        }
        return builder.compact();           //就开始压缩为xxxxxxxxxxxxxx.xxxxxxxxxxxxxxx.xxxxxxxxxxxxx这样的jwt
        //打印了一哈哈确实是下面的这个样子
        //eyJhbGciOiJIUzI1NiJ9.eyJ1aWQiOiJEU1NGQVdEV0FEQVMuLi4iLCJzdWIiOiIiLCJ1c2VyX25hbWUiOiJhZG1pbiIsIm5pY2tfbmFtZSI6IkRBU0RBMTIxIiwiZXhwIjoxNTE3ODI4MDE4LCJpYXQiOjE1MTc4Mjc5NTgsImp0aSI6Imp3dCJ9.xjIvBbdPbEMBMurmwW6IzBkS3MPwicbqQa2Y5hjHSyo
    }
    /**
     * 解密Json web token (JWT)
     * @param Json web token (JWT)
     * @return
     * @throws Exception
     */
    public static Claims parseJWT(String jwt) throws Exception{
        SecretKey key = generalKey(); //签名秘钥，和生成的签名的秘钥一模一样
        Claims claims = Jwts.parser() //得到DefaultJwtParser
                .setSigningKey(key)   //设置签名的秘钥
                .parseClaimsJws(jwt)  //设置需要解析的jwt
                .getBody();
        return claims;
    }
    /**
     * 由字符串生成加密 key
     * @return
     */
    public static SecretKey generalKey(){
        String stringKey = "7786df7fc3a34e26a61c034d5ec8245d";//自定义，本地配置文件中加密的密文
        byte[] encodedKey = Base64.decodeBase64(stringKey);   //本地的密文解码 [B@152f6e2
        System.out.println(encodedKey);//[B@152f6e2
        System.out.println(Base64.encodeBase64URLSafeString(encodedKey));//7786df7fc3a34e26a61c034d5ec8245d
        SecretKey key = new SecretKeySpec(encodedKey, 0, encodedKey.length, "AES");// 根据给定的字节数组使用AES加密算法构造一个密钥，使用 encodedKey中的始于且包含 0 到前 leng 个字节这是当然是所有。（后面的文章中马上回推出讲解Java加密和解密的一些算法）
        return key;
    }
}

基于用户名密码获取 Token

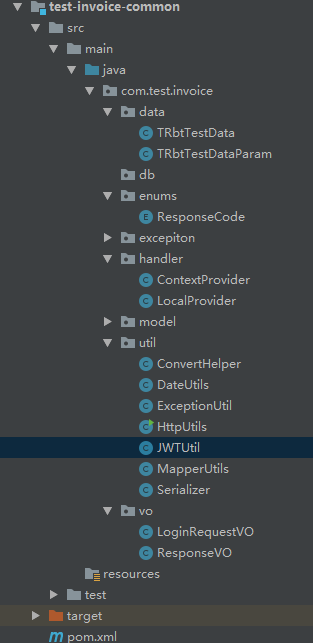

test-invoice-common

SuperEntity

基础实体类-SuperEntity

TRbtUserEntity

package com.test.invoice.model;
import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableName;
import com.test.invoice.model.base.SuperEntity;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import lombok.EqualsAndHashCode;
import lombok.ToString;
import lombok.experimental.Accessors;
/**
 * t_rbt_user 表对应实体类-TRbtUserEntity
 *
 * @author:
 * @version:
 * @date:
 */
@Data
@EqualsAndHashCode(callSuper = true)
@Accessors(chain = true)
@ToString
@TableName("t_rbt_user")
public class TRbtUserEntity extends SuperEntity {
    @ApiModelProperty("用户名")
    @TableField(value="loginName")
    private String loginName;
    @ApiModelProperty("密码")
    @TableField(value="password")
    private String password;
    @ApiModelProperty("密码加盐")
    @TableField(value="withSalt")
    private String withSalt;
    @ApiModelProperty("性别")
    @TableField(value="gender")
    private String gender;
    @ApiModelProperty("手机号")
    @TableField(value="phone")
    private String phone;
    @ApiModelProperty("城市")
    @TableField(value="city")
    private String city;
    @ApiModelProperty("地址")
    @TableField(value="address")
    private String address;
}

LoginRequestVO

package com.test.invoice.vo;
import com.baomidou.mybatisplus.annotation.TableField;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import lombok.experimental.Accessors;
/**
 * 获取用户信息请求参数
 *
 * @author: v_hwhao
 * @version:
 * @date: 2019-10-11 17:50
 */
@Data
@Accessors(chain = true)
public class LoginRequestVO {
    @ApiModelProperty("用户名")
    private String loginName;
    @ApiModelProperty("密码")
    private String password;
}

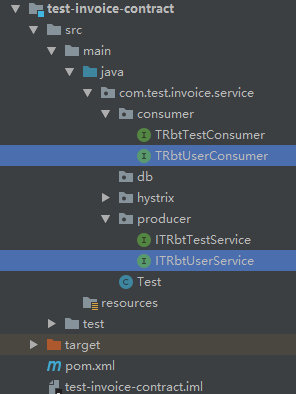

test-invoice-contract

TRbtUserConsumer

package com.test.invoice.service.consumer;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.test.invoice.data.TRbtTestData;
import com.test.invoice.data.TRbtTestDataParam;
import com.test.invoice.model.TRbtUserEntity;
import com.test.invoice.service.hystrix.NotBreakerConfiguration;
import com.test.invoice.vo.LoginRequestVO;
import com.test.invoice.vo.ResponseVO;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.*;
/**
 * Feign-api 接口定义——TRbtUserConsumer
 *
 * @author:
 * @version:
 * @date:
 */
//@FeignClient(value = "service-producer")
//modify by v_hwhao 20190927 - 不进入熔断，直接抛出异常
@FeignClient(value = "service-producer",configuration = NotBreakerConfiguration.class)
public interface TRbtUserConsumer {
    /**
     * 获取用户信息
     * @param param 获取用户信息请求参数
     * @return TRbtUserEntity
     */
    @PostMapping("/Get")
    ResponseVO<TRbtUserEntity> Get(LoginRequestVO param);
}

ITRbtUserService

package com.test.invoice.service.producer;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.test.invoice.data.TRbtTestData;
import com.test.invoice.data.TRbtTestDataParam;
import com.test.invoice.model.TRbtUserEntity;
import com.test.invoice.vo.LoginRequestVO;
import com.test.invoice.vo.ResponseVO;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestParam;
/**
 * 接口定义-ITRbtUserService
 */
public interface ITRbtUserService {
    /**
     * 获取用户信息
     * @param param 获取用户信息请求参数
     * @return TRbtUserEntity
     */
    ResponseVO<TRbtUserEntity> Get(LoginRequestVO param);
}

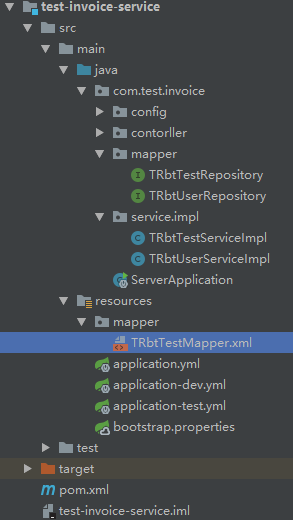

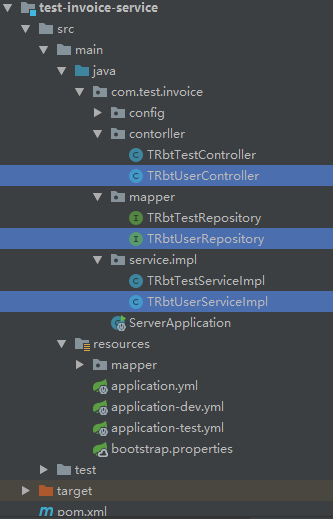

test-invoice-service

TRbtUserRepository

package com.test.invoice.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.test.invoice.model.TRbtUserEntity;
import org.springframework.stereotype.Repository;
@Repository
public interface TRbtUserRepository extends BaseMapper<TRbtUserEntity> {
}

TRbtUserServiceImpl

package com.test.invoice.service.impl;
import cn.hutool.crypto.digest.DigestAlgorithm;
import cn.hutool.crypto.digest.Digester;
import com.baomidou.mybatisplus.core.conditions.Wrapper;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.conditions.update.UpdateWrapper;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.test.invoice.data.TRbtTestData;
import com.test.invoice.data.TRbtTestDataParam;
import com.test.invoice.enums.ResponseCode;
import com.test.invoice.mapper.TRbtTestRepository;
import com.test.invoice.mapper.TRbtUserRepository;
import com.test.invoice.model.TRbtTestEntity;
import com.test.invoice.model.TRbtUserEntity;
import com.test.invoice.service.producer.ITRbtTestService;
import com.test.invoice.service.producer.ITRbtUserService;
import com.test.invoice.vo.LoginRequestVO;
import com.test.invoice.vo.ResponseVO;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.stereotype.Service;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestParam;
import java.util.List;
/**
 * TRbtUserServiceImpl
 *
 * @author:
 * @version:
 * @date:
 */
@Slf4j
@Service
public class TRbtUserServiceImpl extends ServiceImpl<TRbtUserRepository, TRbtUserEntity> implements ITRbtUserService {
    /**
     * 获取用户信息
     * @param param 获取用户信息请求参数
     * @return TRbtUserEntity
     */
    @Override
    public ResponseVO<TRbtUserEntity> Get(LoginRequestVO param){
        ResponseVO<TRbtUserEntity> responseVO = new ResponseVO<>();
        Wrapper<TRbtUserEntity> whereWrapper = new QueryWrapper<>();
        ((QueryWrapper<TRbtUserEntity>) whereWrapper).eq("loginName",param.getLoginName());
        TRbtUserEntity entity = this.baseMapper.selectOne(whereWrapper);
        //账户名不存在
        if(entity == null){
            responseVO.setCode(ResponseCode.ACCOUNT_PASSWORD_ERROR.value());
            responseVO.setMsg(ResponseCode.ACCOUNT_PASSWORD_ERROR.getDescription());
            return responseVO;
        }
        Digester sha512 = new Digester(DigestAlgorithm.SHA512);
        String loginPwd = sha512.digestHex(param.getPassword()+entity.getWithSalt());
        if(!entity.getPassword().equals(loginPwd)){
            responseVO.setCode(ResponseCode.ACCOUNT_PASSWORD_ERROR.value());
            responseVO.setMsg(ResponseCode.ACCOUNT_PASSWORD_ERROR.getDescription());
        }
        else{
            responseVO.setData(entity);
            responseVO.setCode(ResponseCode.OK.value());
            responseVO.setMsg(ResponseCode.OK.getDescription());
        }
        return responseVO;
    }
}

TRbtUserController

package com.test.invoice.contorller;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.test.invoice.data.TRbtTestData;
import com.test.invoice.data.TRbtTestDataParam;
import com.test.invoice.model.TRbtUserEntity;
import com.test.invoice.service.producer.ITRbtTestService;
import com.test.invoice.service.producer.ITRbtUserService;
import com.test.invoice.vo.LoginRequestVO;
import com.test.invoice.vo.ResponseVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
/**
 *
 * 生产者：业务微服务-测试框架系统控制类
 *
 * @author:
 * @version:
 * @date: 2019-08-12 09:53
 */
@RestController
@Api(description = "测试框架系统控制类")
public class TRbtUserController {
    @Resource
    private ITRbtUserService service;
    /**
     * 获取用户信息
     * @param param 获取用户信息请求参数
     * @return TRbtUserEntity
     */
    @PostMapping("/Get")
    public ResponseVO<TRbtUserEntity> Get(@RequestBody LoginRequestVO param){
        return service.Get(param);
    }
}

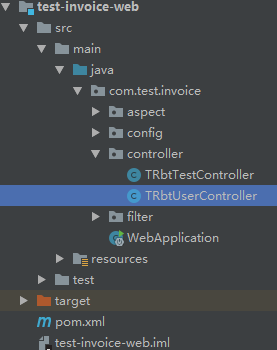

test-invoice-web

TRbtUserController

package com.test.invoice.controller;
import com.alibaba.fastjson.JSON;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import com.test.invoice.data.TRbtTestData;
import com.test.invoice.data.TRbtTestDataParam;
import com.test.invoice.enums.ResponseCode;
import com.test.invoice.model.TRbtTestEntity;
import com.test.invoice.model.TRbtUserEntity;
import com.test.invoice.service.consumer.TRbtTestConsumer;
import com.test.invoice.service.consumer.TRbtUserConsumer;
import com.test.invoice.util.ConvertHelper;
import com.test.invoice.util.DateUtils;
import com.test.invoice.util.JWTUtil;
import com.test.invoice.util.MapperUtils;
import com.test.invoice.vo.LoginRequestVO;
import com.test.invoice.vo.ResponseVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import javax.servlet.http.HttpServletRequest;
import java.time.LocalDate;
/**
 * 消费者，通过 Feign-api 调用
 *
 * @author:
 * @version:
 * @date: 2019-08-12 14:49
 */
@RestController
@Api(description = "测试框架系统控制类")
@RequestMapping("/Inv/Api")
@Slf4j
public class TRbtUserController {
    /**
     * Http Request
     */
    @Autowired
    private HttpServletRequest request;
    //@Resource
    @Autowired
    private TRbtUserConsumer consumer;
    /**
     * 获取 Token
     * @param param 获取用户信息请求参数
     * @return Token
     */
    @PostMapping("/getToken")
    public ResponseVO<String> GetToken(@RequestBody LoginRequestVO param){
        ResponseVO<String> responseVO = new ResponseVO<>();
        try{
            //校验参数
            if(param == null){
                log.info("参数为空");
                responseVO.setCode(ResponseCode.PARAM_INVALID.value());
                responseVO.setMsg("参数为空");
                return responseVO;
            }
            if(StringUtils.isBlank(param.getLoginName())){
                log.info("账号为空");
                responseVO.setCode(ResponseCode.PARAM_INVALID.value());
                responseVO.setMsg("账号为空");
                return responseVO;
            }
            if(StringUtils.isBlank(param.getPassword())){
                log.info("密码为空");
                responseVO.setCode(ResponseCode.PARAM_INVALID.value());
                responseVO.setMsg("密码为空");
                return responseVO;
            }
            //获取用户信息实体
            ResponseVO<TRbtUserEntity> entity = consumer.Get(param);
            //获取用户信息失败
            if(entity.getCode() != ResponseCode.OK.value()){
                log.info(entity.getMsg());
                responseVO.setCode(entity.getCode());
                responseVO.setMsg(entity.getMsg());
                return responseVO;
            }
            TRbtUserEntity userInfo = entity.getData();
            //获取 Token
            String token = JWTUtil.createJWT(userInfo.getId(), JSON.toJSONString(userInfo), 1000000);
            responseVO.setData(token);
            responseVO.setCode(ResponseCode.OK.value());
            responseVO.setMsg("获取 token 成功");
        }catch (Exception ex){
            log.error(ex.getMessage());
            responseVO.setCode(ResponseCode.SYSTEM_EXCEPTION.value());
            responseVO.setMsg("获取 token 出现异常");
        }
        return responseVO;
    }
}

测试

1.t_rbt_user 添加用户数据

这里的密码是 luomaPassword

Digester sha512 = new Digester(DigestAlgorithm.SHA512);
String loginPwd = sha512.digestHex("luomaPassword" + "+luomaWithSalt");

id	loginName	password	withSalt	…
1	luoma	40587b974b67cca8c7c80f654d74d45edd39aaa89c60e4ee50f3f02ca7e606f4f88c61bac4a914cbed6a9beb9d8fcfcbbf0848b4cfb6968519ea4d487efe171d	+luomaWithSalt	…

2.Postman 访问接口

URL: http://localhost:8080/Inv/Api/getToken
Body raw: {"loginName":"luoma","password":"luomaPassword"}

得到结果

{
    "code": 2000,
    "msg": "获取 token 成功",
    "data": "eyJhbGciOiJIUzI1NiJ9.eyJ1aWQiOiJEU1NGQVdEV0FEQVMuLi4iLCJzdWIiOiJ7XCJhZGRyZXNzXCI6XCLngavmmJ9cIixcImJpelRpbWVcIjoxNTcwNzk4MDEwMDAwLFwiY2l0eVwiOlwi5rex5ZyzXCIsXCJjcmVhdGVCeVwiOlwibHVvbWFcIixcImNyZWF0ZVRpbWVcIjoxNTcwNzk3OTk5MDAwLFwiZ2VuZGVyXCI6XCLnlLdcIixcImlkXCI6XCIxXCIsXCJpc0RlbGV0ZVwiOjAsXCJsb2dpbk5hbWVcIjpcImx1b21hXCIsXCJwYXNzd29yZFwiOlwiNDA1ODdiOTc0YjY3Y2NhOGM3YzgwZjY1NGQ3NGQ0NWVkZDM5YWFhODljNjBlNGVlNTBmM2YwMmNhN2U2MDZmNGY4OGM2MWJhYzRhOTE0Y2JlZDZhOWJlYjlkOGZjZmNiYmYwODQ4YjRjZmI2OTY4NTE5ZWE0ZDQ4N2VmZTE3MWRcIixcInBob25lXCI6XCI4ODg4ODg4OFwiLFwidXBkYXRlQnlcIjpcImx1b21hXCIsXCJ1cGRhdGVUaW1lXCI6MTU3MDc5ODAwNzAwMCxcIndpdGhTYWx0XCI6XCIrbHVvbWFXaXRoU2FsdFwifSIsInVzZXJfbmFtZSI6ImFkbWluIiwibmlja19uYW1lIjoiREFTREExMjEiLCJleHAiOjE1NzA4NzMwMTksImlhdCI6MTU3MDg3MjAxOSwianRpIjoiMSJ9.q0sgkHgPwMyC0p3fwoJYlTiFACkZx39P3NAiTI_7Yws"
}

基于 Token 进行验证

基础知识：4.Spring Boot 过滤器 Filter 使用

test-invoice-commmon

LocalProvider

package com.test.invoice.handler;
import com.test.invoice.model.TRbtUserEntity;
import lombok.extern.slf4j.Slf4j;
import javax.servlet.ServletContext;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/**
 * 设置获取用户登入态信息
 *
 * @author:
 * @version:
 * @date: 2019-10-11 19:13
 */
@Slf4j
public class LocalProvider {
    private static ContextProvider contextProvider;
    private static final ThreadLocal<TRbtUserEntity> USER_INFO = new ThreadLocal<>();
    public static void init(HttpServletRequest request, HttpServletResponse response, TRbtUserEntity userInfo) {
        contextProvider = new ContextProvider(request, response);
        USER_INFO.set(userInfo);
    }
    public static TRbtUserEntity getUser() {
        return USER_INFO.get();
    }
    public static void destroy(){
        USER_INFO.remove();
    }
    private static boolean isNull(){
        return USER_INFO.get() == null;
    }
    public static HttpServletRequest getRequest() {
        return contextProvider.getRequest();
    }
    public static HttpServletResponse getResponse() {
        return contextProvider.getResponse();
    }
    public static ServletContext getServletContext() {
        return getRequest().getServletContext();
    }
}

test-invoice-web

OauthFilter(修改)

package com.test.invoice.filter;
import com.alibaba.fastjson.JSON;
import com.test.invoice.enums.ResponseCode;
import com.test.invoice.handler.LocalProvider;
import com.test.invoice.model.TRbtUserEntity;
import com.test.invoice.util.JWTUtil;
import com.test.invoice.vo.ResponseVO;
import io.jsonwebtoken.ExpiredJwtException;
import io.jsonwebtoken.MalformedJwtException;
import io.jsonwebtoken.SignatureException;
import io.jsonwebtoken.UnsupportedJwtException;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.core.annotation.Order;
import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.regex.Pattern;
import static com.xiaoleilu.hutool.lang.Console.log;
/**
 * 过滤器
 *
 * @author:
 * @version:
 * @date: 2019-09-26 19:47
 */
@Order(1)//越小越先执行
@WebFilter(filterName = "oauthFilter", urlPatterns = "/*")
@Slf4j
public class OauthFilter implements Filter {
    /**
     * 调用接口前
     * @param filterConfig
     * @throws ServletException
     */
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        System.out.println("init");
    }
    /**
     * 调用接口后
     * @param servletRequest
     * @param servletResponse
     * @param filterChain
     * @throws IOException
     * @throws ServletException
     */
    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        System.out.println("doFilter");
        HttpServletRequest httpServletRequest = (HttpServletRequest) servletRequest;
        HttpServletResponse httpServletResponse = (HttpServletResponse) servletResponse;
        //从 token 中获取用户信息，如果是不需要验证的接口(如 getToken)，vo.getData() 则返回 null
        ResponseVO<TRbtUserEntity> vo = checkUrl(httpServletRequest);
        if (vo.getCode().equals(ResponseCode.OK.value())) {
            if (vo.getData() != null) {
                //生成新的token
                try {
                    httpServletResponse.setHeader("Content-token", JWTUtil.createJWT(vo.getData().getId(), vo.getData().toString(), 1000));
                } catch (Exception e) {
                    e.printStackTrace();
                }
                TRbtUserEntity info = vo.getData();
                LocalProvider.init(httpServletRequest, (HttpServletResponse) servletResponse, info);
            }
            filterChain.doFilter(servletRequest, servletResponse);
        } else {
            httpServletResponse.getWriter().write(JSON.toJSONString(vo));
        }
       LocalProvider.destroy();
    }
    @Override
    public void destroy() {
        System.out.println("destroy");
    }
    /**
     * 请求方法为OPTIONS的无需校验有效性
     * OPTIONS请求方法的主要用途有两个：
     * 1、获取服务器支持的HTTP请求方法。
     * 2、用来检查服务器的性能。例如：AJAX进行跨域请求时的预检，
     * 需要向另外一个域名的资源发送一个HTTP OPTIONS请求头，用以判断实际发送的请求是否安全。
     */
    private ResponseVO<TRbtUserEntity> checkUrl(HttpServletRequest httpServletRequest) {
        String uri = httpServletRequest.getRequestURI();
        log.info("【监听请求】" + uri);
        TRbtUserEntity info = null;
        String userInfo="";
        try {
            //匹配对应的 url,没有匹配到需要校验 token，如 getToken 则不用校验
            if (!isIgnoredTokenUri(uri)) {
                String token = httpServletRequest.getHeader("Content-token");
                log.info("【过滤器获取TOKEN】" + token);
                //Token缺失
                if (StringUtils.isEmpty(token)) {
                    return new ResponseVO<>(ResponseCode.TOKEN_MISSING);
                }
                //解析Token失效
                userInfo = JWTUtil.parseJWT(token).getSubject();
                //解析Token过期
                info =  JSON.parseObject(userInfo, TRbtUserEntity.class);
                return new ResponseVO<>(ResponseCode.OK, info);
            }
        }catch (ExpiredJwtException e) {
            log.warn("==============================>>>>>>  Token已过期: {} " + e);
            return  new ResponseVO<>(ResponseCode.TOKEN_EXPIRATION);
//            throw new TokenException("Token已过期");
        } catch (UnsupportedJwtException e) {
            log.warn("==============================>>>>>>  Token格式错误: {} " + e);
            return  new ResponseVO<>(ResponseCode.TOKEN_FORMAT_ERROR);
//            throw new TokenException("Token格式错误");
        } catch (MalformedJwtException e) {
            log.warn("==============================>>>>>>  Token没有被正确构造: {} " + e);
            return  new ResponseVO<>(ResponseCode.TOKEN_MALFORMED);
//            throw new TokenException("Token没有被正确构造");
        } catch (SignatureException e) {
            log.warn("==============================>>>>>>  签名失败: {} " + e);
            return  new ResponseVO<>(ResponseCode.TOKEN_SIGNATURE_ERROR);
//            throw new TokenException("签名失败");
        } catch (IllegalArgumentException e) {
            log.warn("==============================>>>>>>  非法参数异常: {} " + e);
            return new ResponseVO<>(ResponseCode.ILLEGAL_ARGUMENT);
//            throw new TokenException("非法参数异常");
        } catch (Exception e) {
//            e.printStackTrace();
            return  new ResponseVO<>(ResponseCode.TOKEN_INVALID);
        }
        return new ResponseVO<>(ResponseCode.OK, info);
    }
    /**
     *  匹配对应的 url
     * @param uri uri
     * @return    匹配到返回 true
     */
    private boolean isIgnoredTokenUri(String uri) {
        String pattern = "(/Inv/Api/getToken)|(/webapp/tax/api/inv/api/*.*)|(/webapp/inv/pc/v1/authorize/*.*)|(/webapp/tax/api/webjars/*)|(/webapp/inv/api/v1/test/*.*)|(/webapp/inv/pc/api/v1/authorize/*.*)|(/mweb/*.*)|(/webapp/inv/api/v1/authorize/getLoginUrl)|(/webapp/inv/api/v1/authorize/getTokenByCode)|(/webapp/inv/api/v1/wx/callbackData/*.*)|(/webapp/inv/api/v1/wx/callbackOrder/*.*)|(/webapp/tax/api/swagger.*)|(/favicon.ico)|(/.*.js)|(/.*.css)|(/.*.png)|(/.*.map)|(/.*.html)|(/webapp/.*.txt)|(.*download.*)|(/.*.svg)|(/.*.jpg)|(/webapp/tax/api/v2.*)";
//        String pattern = "(/inv/pc/v1/authorize/*.*)|(/webjars/*)|(/inv/api/v1/test/*.*)|(/inv/pc/api/v1/authorize/*.*)|(/mweb/*.*)|(/inv/api/v1/authorize/getLoginUrl)|(/inv/api/v1/authorize/getTokenByCode)|(/inv/api/v1/wx/callbackData/*.*)|(/inv/api/v1/wx/callbackOrder/*.*)|(/swagger.*)|(/favicon.ico)|(/.*.js)|(/.*.css)|(/.*.png)|(/.*.map)|(/.*.html)|(/.*.txt)|(.*download.*)|(/.*.svg)|(/.*.jpg)|(/v2.*)";
//        String pattern = "(/enta/api/swagger.*)|(/favicon.ico)|(enta/api/webjars/*)|(/.*.js)|(/.*.css)|(/.*.png)|(/.*.map)|(/.*.html)|(/.*.txt)|(.*download.*)|(/.*.svg)|(/.*.jpg)|(/enta/api/v2.*)";
        return Pattern.matches(pattern, uri);
    }
}

修改 Web Query 方法进行测试

这里只列出修改部分的代码，Query 的代码可以参考 Query

test-invoice-service

TRbtTestServiceImpl(修改)

@Override
public ResponseVO<Page<TRbtTestData>> Query(@RequestBody TRbtTestDataParam param){
    //设置参数中拼接的值，防止 sql 注入
    if(!StringUtils.isBlank(param.getName())){
        param.setName("%"+param.getName()+"%");
    }
    Page<TRbtTestData> page = new Page<>();
    page.setCurrent(param.getPage());
    page.setSize(param.getPageSize());
    //return new ResponseVO<>(ResponseCode.OK, baseMapper.selectPageVO(page, param));
    IPage<TRbtTestData> ipageData = baseMapper.selectPageVO(page, param);
    //IPage<TRbtTestData> 转换为 Page<TRbtTestData>
    Page<TRbtTestData> pageData = new Page<>();
    pageData.setRecords(ipageData.getRecords());
    pageData.setCurrent(ipageData.getCurrent());
    pageData.setSize(ipageData.getSize());
    pageData.setTotal(ipageData.getTotal());
    return new ResponseVO<>(ResponseCode.OK, pageData);
}

TRbtTestMapper.xml(修改)

Token 中获取用户名作为 create_by 的条件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.test.invoice.mapper.TRbtTestRepository">
    <select id="selectPageVO" resultType="com.test.invoice.data.TRbtTestData"
            parameterType="com.test.invoice.data.TRbtTestDataParam">
        select id,name,version
        from t_rbt_test
        where create_by = #{param.createBy}
        <if test="param.name != null and param.name != ''">
            and name like #{param.name}
        </if>
        order by name
    </select>
</mapper>

test-invoice-web

TRbtTestController(修改)

@PostMapping("/Test/Query")
@ApiOperation(value = "系统框架测试-获取分页数据", httpMethod = "POST", response = ResponseVO.class, notes = "系统框架测试-获取分页数据")
public ResponseVO Query(@RequestBody TRbtTestDataParam param){
    ResponseVO<Page<TRbtTestData>> responseVO = new ResponseVO<>();
    try{
        //从 token 中获取用户名
        String token = request.getHeader("Content-token");
        String userInfoStr = JWTUtil.parseJWT(token).getSubject();
        TRbtUserEntity userInfo =  JSON.parseObject(userInfoStr, TRbtUserEntity.class);
        param.setCreateBy(userInfo.getLoginName());
        responseVO = testConsumer.Query(param);
    }catch (Exception ex){
        log.error(ex.getMessage());
        responseVO.setCode(ResponseCode.SYSTEM_EXCEPTION.value());
        responseVO.setMsg("获取分页数据异常，"+ex.getMessage());
    }
    return responseVO;
}

使用 Postman 测试

把上一步测试获取到的 Token 放到这次请求的 Header 中，名称为 Content-token

Header 部分

属性	值
Content-Type	application/json
Content-token	eyJhbGciOiJIUzI1NiJ9.eyJ1aWQiOiJEU1NGQVdEV0FEQVMuLi4iLCJzdWIiOiJ7XCJhZGRyZXNzXCI6XCLngavmmJ9cIixcImJpelRpbWVcIjoxNTcwNzk4MDEwMDAwLFwiY2l0eVwiOlwi5rex5ZyzXCIsXCJjcmVhdGVCeVwiOlwibHVvbWFcIixcImNyZWF0ZVRpbWVcIjoxNTcwNzk3OTk5MDAwLFwiZ2VuZGVyXCI6XCLnlLdcIixcImlkXCI6XCIxXCIsXCJpc0RlbGV0ZVwiOjAsXCJsb2dpbk5hbWVcIjpcImx1b21hXCIsXCJwYXNzd29yZFwiOlwiNDA1ODdiOTc0YjY3Y2NhOGM3YzgwZjY1NGQ3NGQ0NWVkZDM5YWFhODljNjBlNGVlNTBmM2YwMmNhN2U2MDZmNGY4OGM2MWJhYzRhOTE0Y2JlZDZhOWJlYjlkOGZjZmNiYmYwODQ4YjRjZmI2OTY4NTE5ZWE0ZDQ4N2VmZTE3MWRcIixcInBob25lXCI6XCI4ODg4ODg4OFwiLFwidXBkYXRlQnlcIjpcImx1b21hXCIsXCJ1cGRhdGVUaW1lXCI6MTU3MDc5ODAwNzAwMCxcIndpdGhTYWx0XCI6XCIrbHVvbWFXaXRoU2FsdFwifSIsInVzZXJfbmFtZSI6ImFkbWluIiwibmlja19uYW1lIjoiREFTREExMjEiLCJleHAiOjE1NzA4NzMwMTksImlhdCI6MTU3MDg3MjAxOSwianRpIjoiMSJ9.q0sgkHgPwMyC0p3fwoJYlTiFACkZx39P3NAiTI_7Yws

URL: http://localhost:8080/Inv/Api/Test/Query
Body raw: {"page":1,"pageSize":3,"name":"哥"}

返回值

{
    "code": 2000,
    "msg": "Success",
    "data": {
        "records": [
            {
                "id": "0ab4a8f4ab6e50404b12584691586131",
                "name": "三哥",
                "version": "1.0.6"
            },
            {
                "id": "09436c41966040a991d0275d5265f7ea",
                "name": "三哥",
                "version": "1.0.6"
            },
            {
                "id": "09e167f4121cc86002ebb583eb031c7a",
                "name": "三哥",
                "version": "1.0.6"
            }
        ],
        "total": 45,
        "size": 3,
        "current": 1,
        "searchCount": true,
        "pages": 15
    },
    "timestamp": 1570872550819
}

修改 Content-token 的值为 1

返回 {"code":4004,"msg":"token??????","timestamp":1570882695985}
